Navigation console

ENC3

created by divers for divers innovative navigation console

created by divers for divers innovative navigation console

For years, divers have been traveling the immense depths of waters. Thanks to Seacraft DPVs, they dive deeper and farther, crossing new borders, exploring new caves and finding new wrecks.

Simply and safely to the destination

Simply and safely to the destination

Each of us, regardless of whether we dive recreationally, technically, or professionally must reach the destination, then safely return to its base, all the time keeping the orientation underwater.

This is not always easy and obvious, especially with poor visibility, complex tasks or high speeds and distances that can be achieved thanks to modern DPVs. Seacraft offers a range of innovative products created by engineers, whose diving experience combined with engineering knowledge allows to perfectly adapt products to the needs of other divers.

ENC3electronic navigation console

ENC3electronic navigation console

Electronic navigation console supporting underwater navigation – ENC3 is a revolutionary device, and only one so compact and powerful navigational underwater tool available on the market. Depended of needs the ENC 3 can be used both assembled on the scooter and without a scooter or with the surveyor tool.

On attached picture GHOST 2000 with assembled ENC3

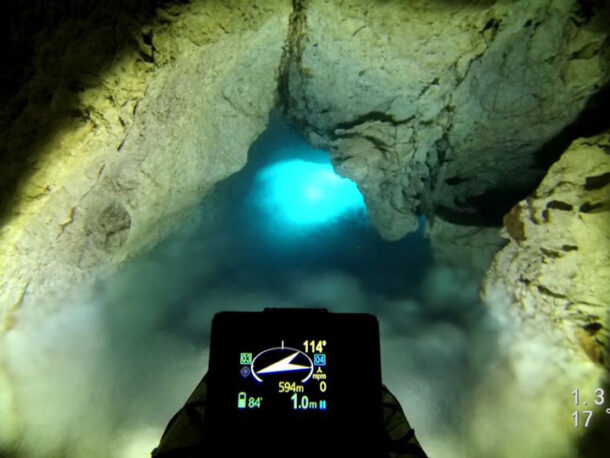

In action

$head
$head
$head
$head
$head
$head

Specification

Navigation
ENC v3
Depth of start and stop of immersion time counting:
ENC v3Optional: 0.5, 1 or 1.6 m (compatible with the norm EN 13319)
Accuracy of depth measurement:
ENC v30.3 m in the whole depth range, temp. range: 0…30°C
Accuracy of ext. log :
ENC v3<2%*
Accuracy of compass:
ENC v3<5 degrees*
Possibility of using above the water level :
ENC v3up to 5000 m
Internal storage capacity:
ENC v350 routes
Included sensors:
ENC v33D magnetometer, 3D gyroscope, 3D accelerometer, pressure sensor, temperature sensor
Satelite positioning:
ENC v3GPS, Beidou, GLONASS
Data exchange:
ENC v3via Bluetooth 4.2 and/or via USB cable

* The accuracy of the measurement depends on the quality of the calibration and the absence of external interference.

Battery
ENC v3
Battery type:
ENC v3Built-in Li-ion 3,7 V**
Battery capacity:
ENC v35 Wh
Average time of charging 100%:
ENC v3<2 h

** Device can use any 5 V DC power source as charger. When charging, it can consume up to 1 A current.

Dimensions
ENC v3
Width:
ENC v330,6 mm
Lenght:
ENC v395 mm
Height:
ENC v371 mm
Weight:
ENC v3290 g
Other
ENC v3
Maximum depth:
ENC v3300 m
Tested depth:
ENC v3350 m
Displacement:
ENC v3-90 g
Operating temperature:
ENC v3+10 … +45⁰C
Storage temperature:
ENC v3-20 … +45⁰C
Temperature while charging:
ENC v3+10 … +40⁰C

Full set, dedicated to Seacraft scooters

Electronic Navigation Console ENC3
ENC3 speed sensor
compact / cave version
ENC mounting bracket
dedicated to chosen Seacraft model
Spares
Blind plug, spare seals, dedicated box

Full set, universal, for other DPV models

Electronic Navigation Console ENC3
ENC3 speed sensor
regular "arm" version
ENC mounting bracket
universal, for other DPV models
Spares
Blind plug, spare seals, dedicated box

Pricing

Electronic Navigation Console ENC3 ‐ full set dedicated for Seacraft Future scootersFE1111
1650 EUR
Electronic Navigation Console ENC3 ‐ full set dedicated for Seacraft Ghost scootersGE1111
1720 EUR
Electronic Navigation Console ENC3 - full set dedicated for other scootersE1112
1770 EUR
Electronic Navigation Console ENC3 (console only)E1080
1250 EUR
Electronic Navigation Console ENC3 speed sensor (vertical arm)E1081
349 EUR
Electronic Navigation Console ENC3 speed sensor- compact/cave versionE1082
349 EUR
Pricing

Pricing does not include taxes (VAT) or shipping and packaging. Pricing is valid for the EU countries, and presented in Euro currency. For other countries please contact directly our Dealers or Distributors. Please note that it is presented as indication only.

Ordering

To get our products, see where is the nearest dealer located.

ENC3 Support
